SPECTRAN HF-6060 V4
RF Analyzer entrance unit of the latest V4 generation. Offers a up to 100x faster sample time, a much higher sensitivity, smaller filter (RBW) and lots of new additional features compared to the portable V3 spectrum analyzers.
Our latest V4 generation offer a vastly enhanced feature set with significantly faster sample time, more dynamic range, better IP3, reduced phase noise, greater demodulation bandwidth and improved LCD display compared to the previous V3 series. Our V4 flagship HF-60100 V4 is even suitable for Pre-Compliance and EMC/EMI tests.
Based on a patented spectrum analyzer method Aaronia can offer a professional RF measurement at a spectacular price level.
Detect sources of interference, find out more about their causes, determine the frequency and intensity of the signal sources, measure limits and boost the functionality by using our high-end PC software.

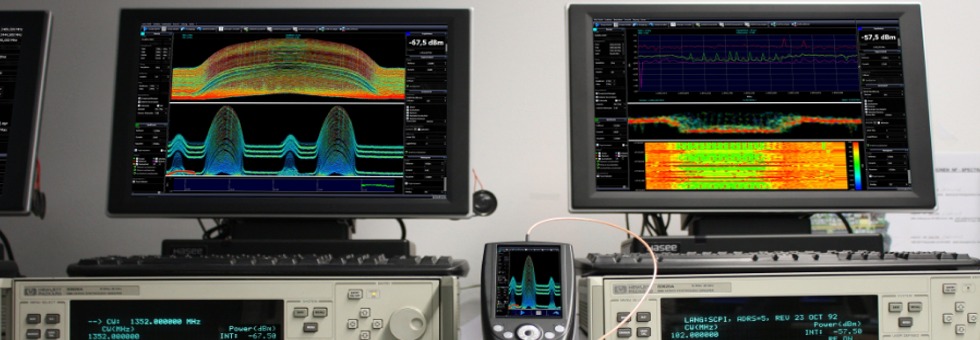

Real-time remote spectrum analyzer software (included for FREE):
All SPECTRAN units offer a USB interface with real-time remote control to your PC or MAC. The free analyzer software, which is available for MAC OS, Linux and Windows, transforms any SPECTRAN in a powerful measurement solution with great features (e.g. recording, multiple window display, histogram, waterfall diagram, unlimited number of markers, enhanced limits display etc.).
All SPECTRAN units offer a powerful limits display. Just push the limits button at our Spectrum Analyzer and the high-performance Digital Signal Processor (DSP) of the SPECTRAN constantly calculates the limits and displays the results in real-time. Spectrum analyzers with this high-end feature usually cost thousands of Euro. Just save this costs by using Aaronia analyzers.
EMC antenna included:
The shipment of each SPECTRAN already includes a free EMC directional antenna which covers a wide frequency range. In addition Aaronia provides a lot of optional antennas especially for pre compliance and EMC/EMI tests. Those offer a much higher frequency range and more gain (especially in the frequency range below 700MHz). More details about our antennas can be found at LINK.
- Frequency range: 1MHz to 6GHz
- DANL: -170dBm(1Hz)
- Max. power: +20dBm (opt. +40dBm)
- Lowest sample time: 5mS
- Resolution (RBW): 200Hz to 50MHz
- EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz
- Units: dBm, dBµV, V/m, A/m, W/m²
dBµV/m, W/cm² etc.
- Detectors: RMS, Min/Max
- Demodulator: AM, FM, PM, GSM
- Low noise Preamp: Integrated
- Input: 50 Ohm SMA RF-input (f)
- Accuracy: +/- 1dB (typ.)
- Dimensions (L/W/D): 257x353x56 mm
- Weight: 1kg
