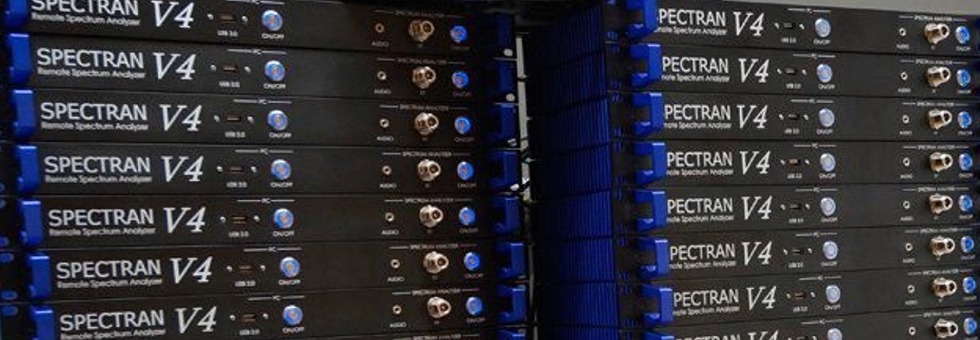

Remote controllable Spectrum Analyser SPECTRAN HF RSA 6000 (Rack version)

Remote controlled Spectrum Analyzer for the professional user up to 6GHz incl. real-time remote analyzer software for MAC-OS, Linux, Windows.

 Our latest 19" rack mount Spectrum Analyzer generation offers a vastly enhanced feature set with better screening, significantly faster sample time, more dynamic range, better IP3, reduced phase noise and greater demodulation bandwidth compared to the previous V3 series.

 Contains a fully equipped internal PC!

Our 19" inch Spectrum Analyzer can be used in any standard 19" rack. The RSA Series offers the possibility to control the analyzer via LAN / WLAN or USB. These interfaces allow a complete integration into an existing network. The Spectrum Analyzer can either be remotely controlled via MCS software or via the optional web interface (Software "EMF-Monitor"). The system is based on a Linux operating system and can be expanded or customized manually (VPN, GSM dial-up, etc.).

Patented technology:

Based on a patented spectrum analyzer method Aaronia can offer a professional RF measurement at a spectacular price level. Detect sources of interference, find out more about their causes, determine the frequency and intensity of the signal sources, measure limits etc.

Frequency range: 10MHz to 6GHz

• DANL: -135dBm(1Hz)
• DANL with Preamp: -150dBm(1Hz)
• Max. power at RF input: +10dBm
• Lowest sample time: 10mS
• Resolution (RBW): 3kHz to 50MHz
• Units: dBm, dBµV, V/m, A/m, W/m²
  dBµV/m, W/cm² etc.
• Detectors: RMS, Min/Max
• Demodulator: AM, FM
• Input: 50 Ohm N, RF-input (f)
• Accuracy: +/- 2dB (typ.)
• Interface: USB 2.0/1.1/LAN
• Dimensions (L/W/D): 19 inch rack mount
• Weight: 3450gr
